스프링 프레임워크 - [Spring] Maven

Maven(메이븐)



아파치 메이븐은 자바용 프로젝트 관리 도구이다. 아파치 앤트의 대안으로 만들어졌다. 아파치 라이선스로 배포되는 오픈 소스 소프트웨어이다.





우측상단의 open perspective 선택 spring(default) 선택해서 프로젝트 열기

open perspective 아이콘 클릭



새 프로젝트 생성 > New Spring Legacy Project 선택

선택하고 Next> 눌러서 패키지명 작성하고 Finish





처음 스프링 프로젝트 생성시 조금 시간이 소요된다. (하단의 프로그레스바로 진행상황을 볼 수 있다.)

프로젝트 생성 완료

pom.xml 파일에서 세팅설정한다.



https://mvnrepository.com/

Maven Repository: Search/Browse/Explore



위의 사이트에서 JSTL 검색 후 내용을 클립보드 복사(가장 많이 다운로드 한 버전을 사용할것)





이런식으로 AOP, AspectJ, CGLib, Spring JDBC... 등등 복사해서 붙여넣기

pom.xml

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
	xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/maven-v4_0_0.xsd">
	<modelVersion>4.0.0</modelVersion>
	<groupId>com.java</groupId>
	<artifactId>homgPage</artifactId>
	<name>06_MavenSpringMVC</name>
	<packaging>war</packaging>
	<version>1.0.0-BUILD-SNAPSHOT</version>
	<properties>
		<java-version>1.6</java-version>
		<org.springframework-version>3.1.1.RELEASE</org.springframework-version>
		<org.aspectj-version>1.6.10</org.aspectj-version>
		<org.slf4j-version>1.6.6</org.slf4j-version>
	</properties>
	<dependencies>
		<!-- Spring -->
		<dependency>
			<groupId>org.springframework</groupId>
			<artifactId>spring-context</artifactId>
			<version>${org.springframework-version}</version>
			<exclusions>
				<!-- Exclude Commons Logging in favor of SLF4j -->
				<exclusion>
					<groupId>commons-logging</groupId>
					<artifactId>commons-logging</artifactId>
				 </exclusion>
			</exclusions>
		</dependency>
		<dependency>
			<groupId>org.springframework</groupId>
			<artifactId>spring-webmvc</artifactId>
			<version>${org.springframework-version}</version>
		</dependency>

		<!-- AspectJ -->
		<dependency>
			<groupId>org.aspectj</groupId>
			<artifactId>aspectjrt</artifactId>
			<version>${org.aspectj-version}</version>
		</dependency>

		<!-- Logging -->
		<dependency>
			<groupId>org.slf4j</groupId>
			<artifactId>slf4j-api</artifactId>
			<version>${org.slf4j-version}</version>
		</dependency>
		<dependency>
			<groupId>org.slf4j</groupId>
			<artifactId>jcl-over-slf4j</artifactId>
			<version>${org.slf4j-version}</version>
			<scope>runtime</scope>
		</dependency>
		<dependency>
			<groupId>org.slf4j</groupId>
			<artifactId>slf4j-log4j12</artifactId>
			<version>${org.slf4j-version}</version>
			<scope>runtime</scope>
		</dependency>
		<dependency>
			<groupId>log4j</groupId>
			<artifactId>log4j</artifactId>
			<version>1.2.15</version>
			<exclusions>
				<exclusion>
					<groupId>javax.mail</groupId>
					<artifactId>mail</artifactId>
				</exclusion>
				<exclusion>
					<groupId>javax.jms</groupId>
					<artifactId>jms</artifactId>
				</exclusion>
				<exclusion>
					<groupId>com.sun.jdmk</groupId>
					<artifactId>jmxtools</artifactId>
				</exclusion>
				<exclusion>
					<groupId>com.sun.jmx</groupId>
					<artifactId>jmxri</artifactId>
				</exclusion>
			</exclusions>
			<scope>runtime</scope>
		</dependency>

		<!-- @Inject -->
		<dependency>
			<groupId>javax.inject</groupId>
			<artifactId>javax.inject</artifactId>
			<version>1</version>
		</dependency>

		<!-- Servlet -->
		<dependency>
			<groupId>javax.servlet</groupId>
			<artifactId>servlet-api</artifactId>
			<version>2.5</version>
			<scope>provided</scope>
		</dependency>
		<dependency>
			<groupId>javax.servlet.jsp</groupId>
			<artifactId>jsp-api</artifactId>
			<version>2.1</version>
			<scope>provided</scope>
		</dependency>
		<dependency>
			<groupId>javax.servlet</groupId>
			<artifactId>jstl</artifactId>
			<version>1.2</version>
		</dependency>

		<!-- Test -->
		<dependency>
			<groupId>junit</groupId>
			<artifactId>junit</artifactId>
			<version>4.7</version>
			<scope>test</scope>
		</dependency>

		<!-- Library 추가 -->
		<!-- JSTL -->
		<!-- https://mvnrepository.com/artifact/javax.servlet/jstl -->
		<dependency>
		    <groupId>javax.servlet</groupId>
		    <artifactId>jstl</artifactId>
		    <version>1.2</version>
		</dependency>

		<!-- STANDARD -->
		<!-- https://mvnrepository.com/artifact/taglibs/standard -->
		<dependency>
		    <groupId>taglibs</groupId>
		    <artifactId>standard</artifactId>
		    <version>1.1.2</version>
		</dependency>


		<!-- AOP -->
		<!-- Oracle -->
		<!-- Download -->

	</dependencies>
    <build>
        <plugins>
            <plugin>
                <artifactId>maven-eclipse-plugin</artifactId>
                <version>2.9</version>
                <configuration>
                    <additionalProjectnatures>
                        <projectnature>org.springframework.ide.eclipse.core.springnature</projectnature>
                    </additionalProjectnatures>
                    <additionalBuildcommands>
                        <buildcommand>org.springframework.ide.eclipse.core.springbuilder</buildcommand>
                    </additionalBuildcommands>
                    <downloadSources>true</downloadSources>
                    <downloadJavadocs>true</downloadJavadocs>
                </configuration>
            </plugin>
            <plugin>
                <groupId>org.apache.maven.plugins</groupId>
                <artifactId>maven-compiler-plugin</artifactId>
                <version>2.5.1</version>
                <configuration>
                    <source>1.6</source>
                    <target>1.6</target>
                    <compilerArgument>-Xlint:all</compilerArgument>
                    <showWarnings>true</showWarnings>
                    <showDeprecation>true</showDeprecation>
                </configuration>
            </plugin>
            <plugin>
                <groupId>org.codehaus.mojo</groupId>
                <artifactId>exec-maven-plugin</artifactId>
                <version>1.2.1</version>
                <configuration>
                    <mainClass>org.test.int1.Main</mainClass>
                </configuration>
            </plugin>
        </plugins>
    </build>
</project>



webapp 에는 Javscript, CSS 등이 들어간다.

views에는 JSP파일들을 넣어준다.



패키지 생성 후에 java파일 작성하기(이전에했던 회원가입 프로젝트의 코드를 가지고왔다)



servlet-context.xml 로 가서 수정해준다. naespace로 가서 aop추가해준다.

DI, AOP 설정 추가

	<!-- DI -->
	<context:component-scan base-package="com.java..*" />

	<!-- AOP -->
	<aop:aspectj-autoproxy/>
</beans:beans>



기존에 작성했던 css, javascript 경로때문에 resource밖으로 뺐다.

이 경우에는 resource mapping 설정이 추가적으로 필요하다.

<?xml version="1.0" encoding="UTF-8"?>
<beans:beans xmlns="http://www.springframework.org/schema/mvc"
	xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
	xmlns:beans="http://www.springframework.org/schema/beans"
	xmlns:context="http://www.springframework.org/schema/context"
	xmlns:aop="http://www.springframework.org/schema/aop"
	xsi:schemaLocation="http://www.springframework.org/schema/mvc https://www.springframework.org/schema/mvc/spring-mvc.xsd
		http://www.springframework.org/schema/beans https://www.springframework.org/schema/beans/spring-beans.xsd
		http://www.springframework.org/schema/context https://www.springframework.org/schema/context/spring-context.xsd
		http://www.springframework.org/schema/aop http://www.springframework.org/schema/aop/spring-aop-3.1.xsd">

	<!-- DispatcherServlet Context: defines this servlet's request-processing infrastructure -->

	<!-- Enables the Spring MVC @Controller programming model -->
	<annotation-driven />

	<!-- Handles HTTP GET requests for /resources/** by efficiently serving up static resources in the ${webappRoot}/resources directory -->
	<resources mapping="/resources/**" location="/resources/" />
   	<!-- css -->
	<resources mapping="/css/**" location="/css/" />
   	<!-- javascript -->
    <resources mapping="/javascript/**" location="/javascript/" />

	<!-- Resolves views selected for rendering by @Controllers to .jsp resources in the /WEB-INF/views directory -->
	<beans:bean class="org.springframework.web.servlet.view.InternalResourceViewResolver">
		<beans:property name="prefix" value="/WEB-INF/views/" />
		<beans:property name="suffix" value=".jsp" />
	</beans:bean>

	<!-- DI -->
	<context:component-scan base-package="com.java..*" />

	<!-- AOP -->
	<aop:aspectj-autoproxy/>
</beans:beans>



jdbc연결 설정 : 톰캣 경로의 lib에 ojdbc6.jar파일을 넣어준다.



마찬가지로 클립보드에 복사 -> pom.xml 파일에 붙여넣기

		<!-- Download / -->

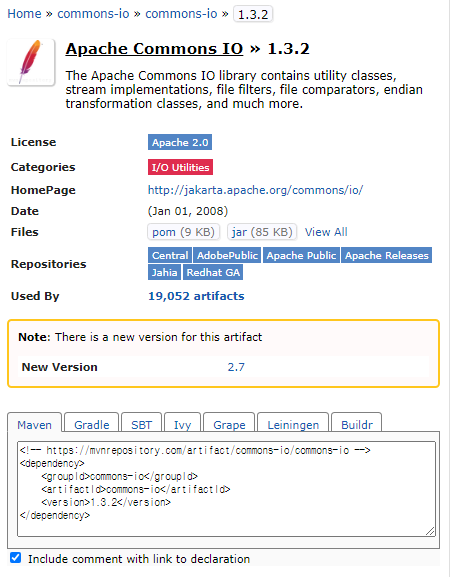

		<!-- https://mvnrepository.com/artifact/commons-io/commons-io -->
		<dependency>
			<groupId>commons-io</groupId>
			<artifactId>commons-io</artifactId>
			<version>1.3.2</version>
		</dependency>

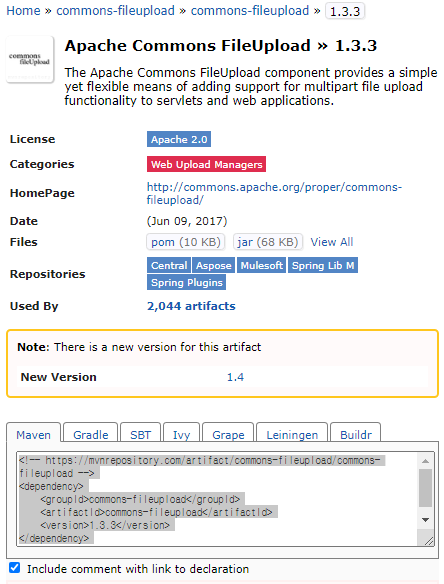

		<!-- https://mvnrepository.com/artifact/commons-fileupload/commons-fileupload -->
		<dependency>
		    <groupId>commons-fileupload</groupId>
		    <artifactId>commons-fileupload</artifactId>
		    <version>1.3.3</version>
		</dependency>
